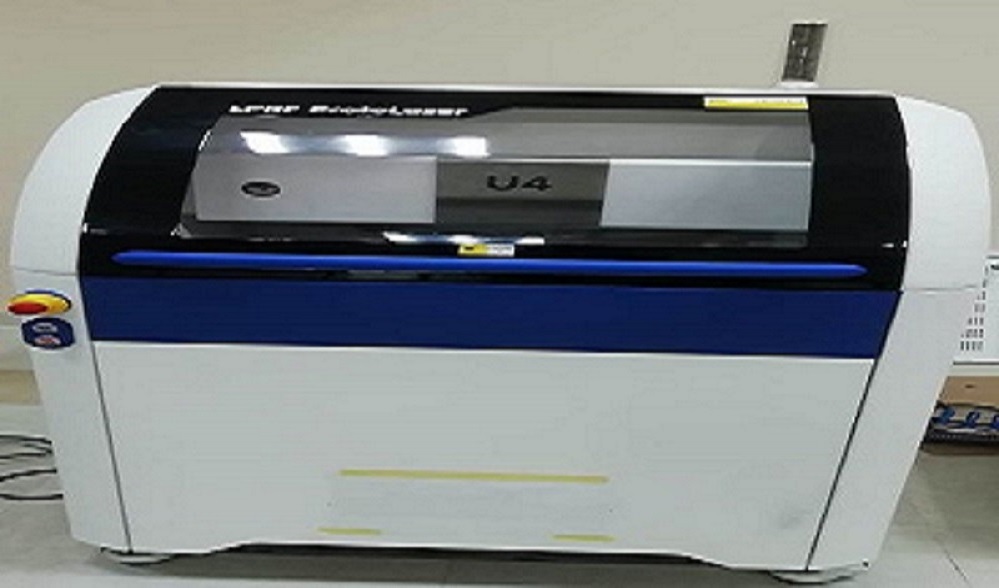

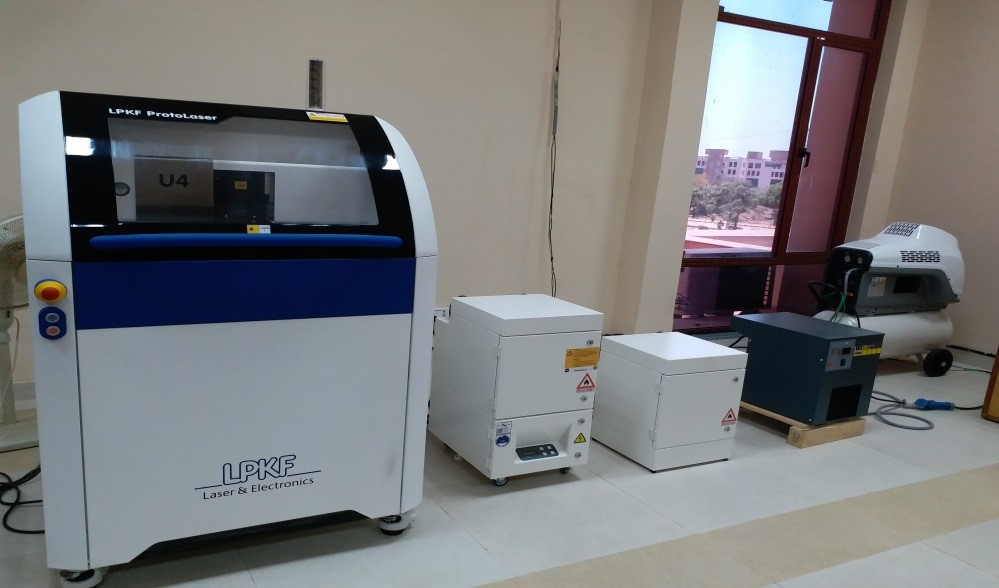

PCB’s LPKF Protolaser U4 RMA_7295
Laser Structuring of Prototyping
Technical Description
Name of the Equipment
- Laser Structuring of prototyping & PCB’s LPKF Protolaser U4 RMA_7295
Model Number
- OS2500A268
Complete Specifications
- Compact laser having 355 nm wavelength with operating hours 779h, Laser power 5.7 W, 30µs Frames per second , laser pulse frequency 25Khz- 300 KHz, focused laser Beam 20µm, beam size 2.85 mm, Resolution 1.2 µm, Beam deflection max speed 4000 mm/s Max. structuring Area 229X3.5X10 mm, scanner field size 50 X50 mm
| S. No. | Name | LPKF Laser & Electronics |
|---|---|---|
| Address | LPKF Laser & Electronics AG, Osteriede 7, D-30827, Garbsen, Germany, PIN- 30823, Fax - +49(5131) 7095-90 | |
| Phone | +49(5131)7095-0 | |
| Support.rp@lpkf.com, lpkf@lpkf.com |
| S. No. | Name | Bergen Associates Pvt. Ltd |
|---|---|---|
| Address | 305-306 Magnum House -1, Commercial complex Karampura, new Delhi, PIN 110015 | Phone | +91 9717546500 |
| s.soubam@bergengroupindia.com | Actual Cost (in Foreign Exchange) | 150,610.00 euro |

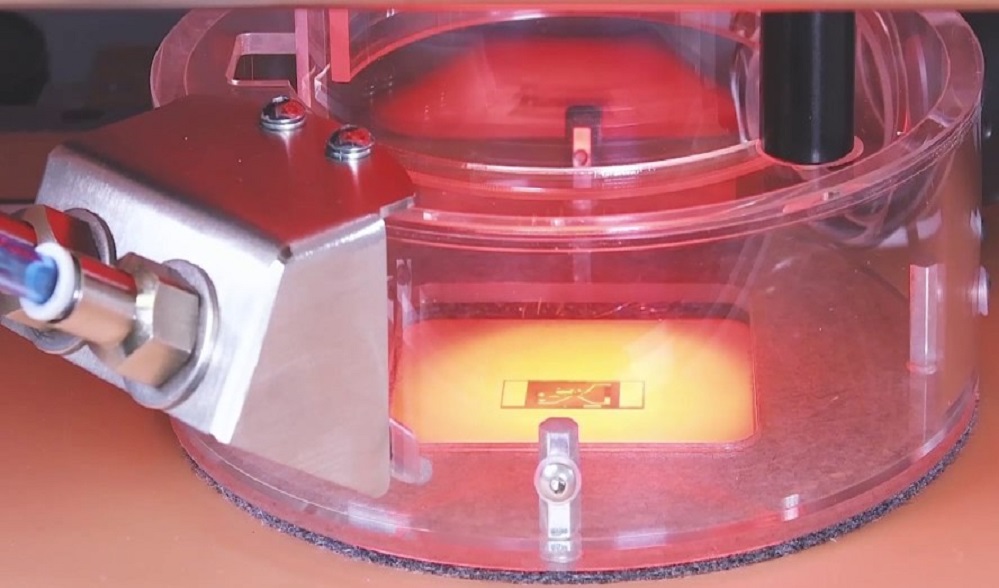

| Used for | Compact laser system for Micro Material processing, structuring and laser cutting of rigid (ceramic) materials. |
